Mobile pedestal for tableside equipment
1340/3
Ergonomic mobile pedestal designed to hold tableside equipment controls.
Description
Mobile pedestal for tableside equipment
This ergonomic mobile pedestal is designed to hold tableside equipment controls. Each tier can be height adjusted individually to suit the operator and the low centre of gravity guarantees stability.
- 80 cm wide rails arranged in two tiers which can accommodate several control modules.
- Both tiers are individually height adjustable.
- The lower rail protrudes forward from the upper rail by 16 cm for a step wise setup.
- Optional 80 cm wide, 0.5 mm lead equivalent flexible protective curtain.
- Heavy base with a 61 x 72 cm footprint giving stability and a low centre of gravity.
- Large twin wheel castors with roll and swivel locks ensure effortless movement.
- Castors are fitted with guards to prevent the pedestal from running over cables.
- The overall height of this mobile pedestal for tableside equipment is 124 cm.

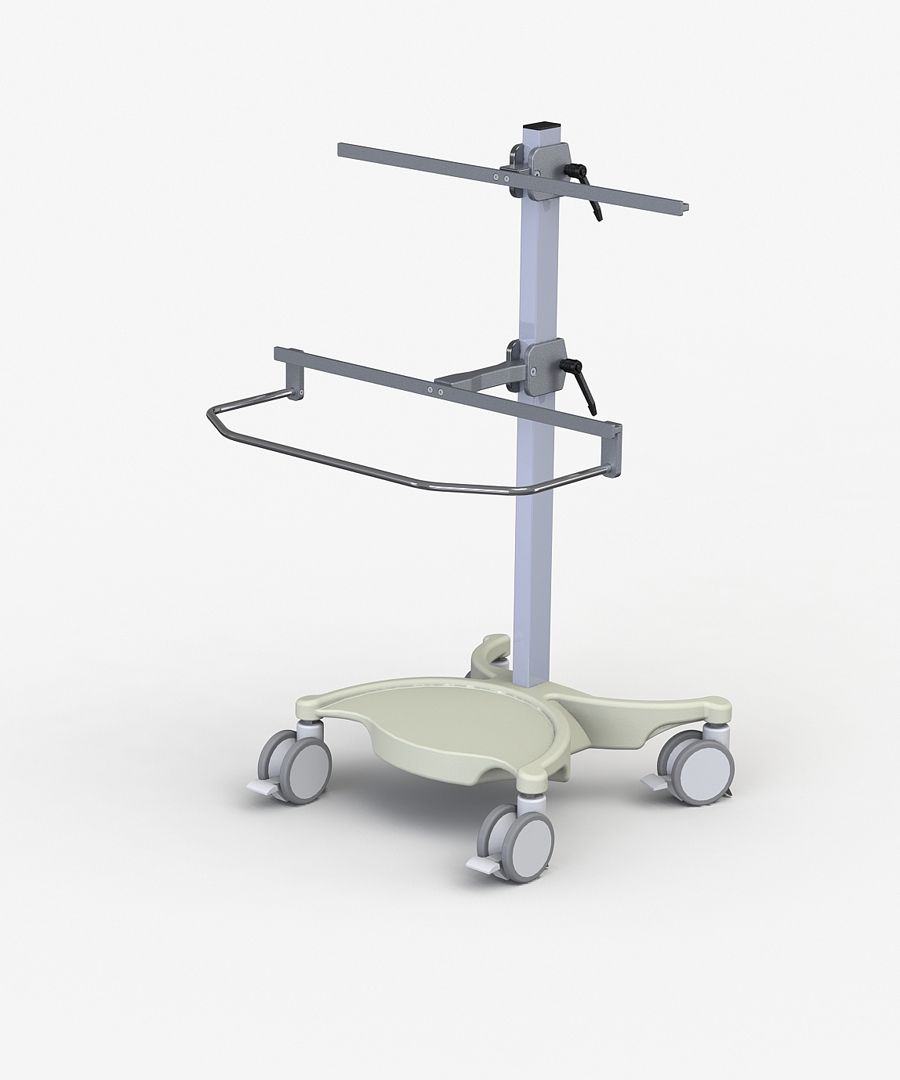

Mobile pedestal:
80 cm wide rails (7.7 x 25 mm section): 1340/3
80 cm wide rails (10 x 25 mm section): 1340/3/10
Weight: 46.3 kg

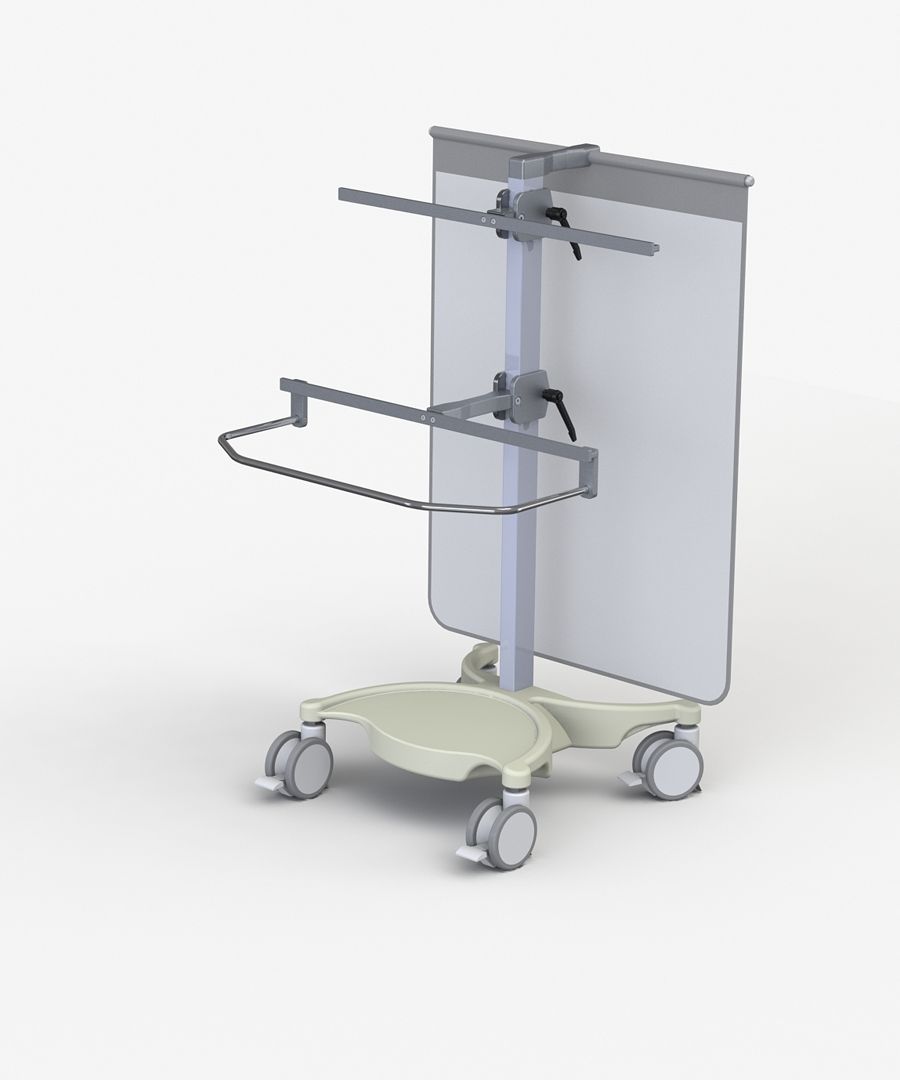

Mobile pedestal with attached flexible radiation shield:
80 cm wide rails (7.7 x 25 mm section): 1340/3/LR
80 cm wide rails (10 x 25 mm section): 1340/3/10/LR
Weight: 57.2 kg
