LED 150 lamp headLED 150 lamp head

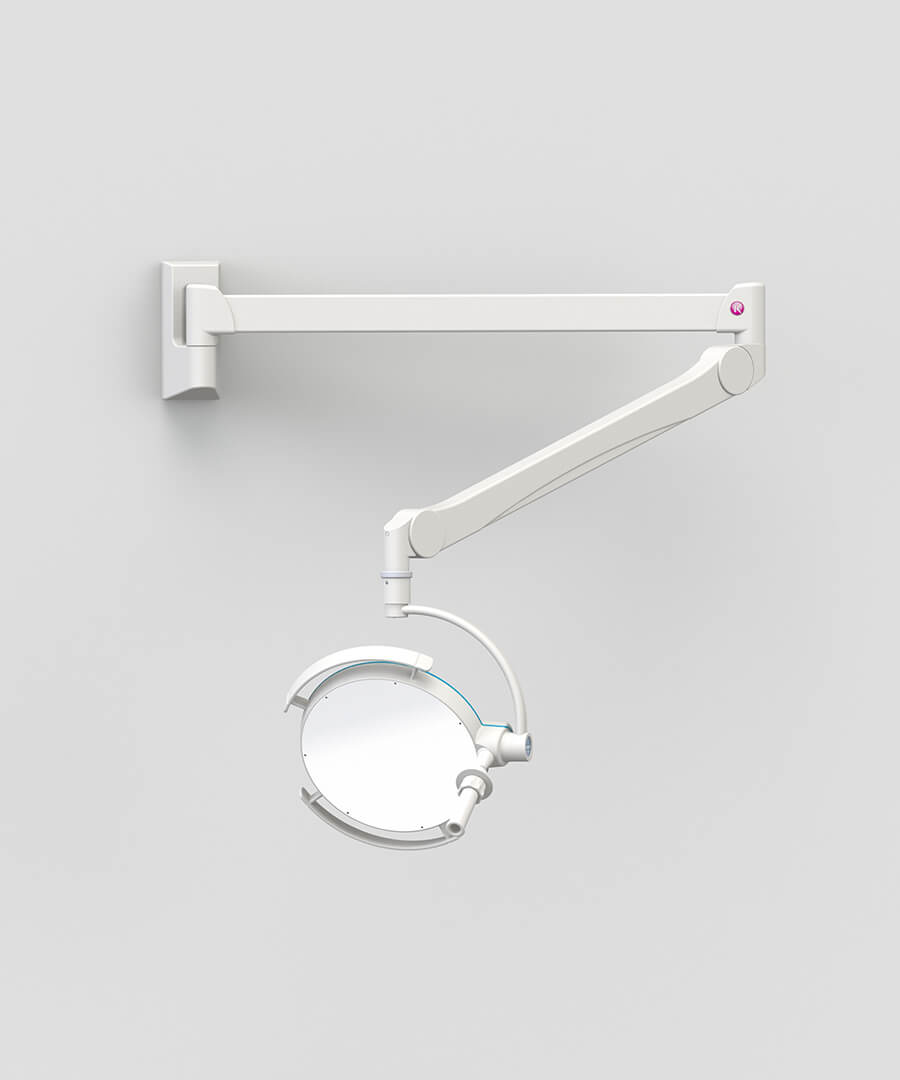

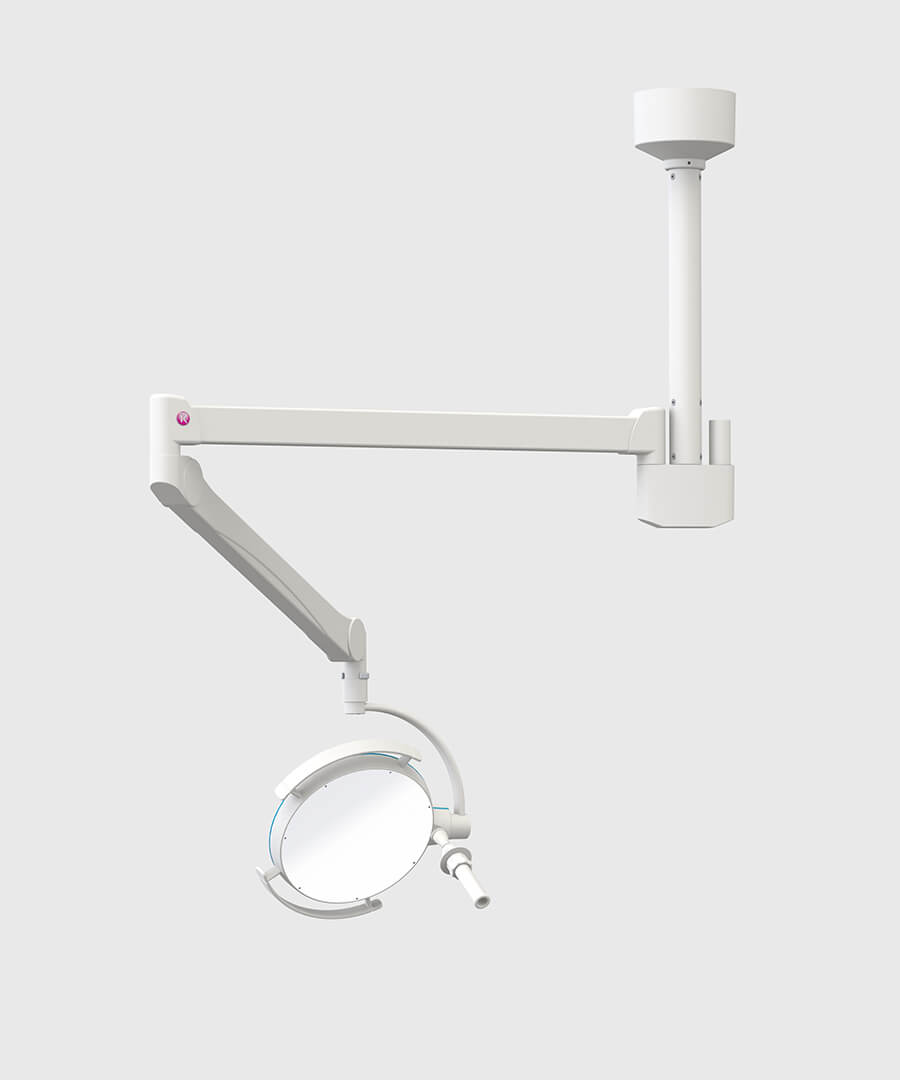

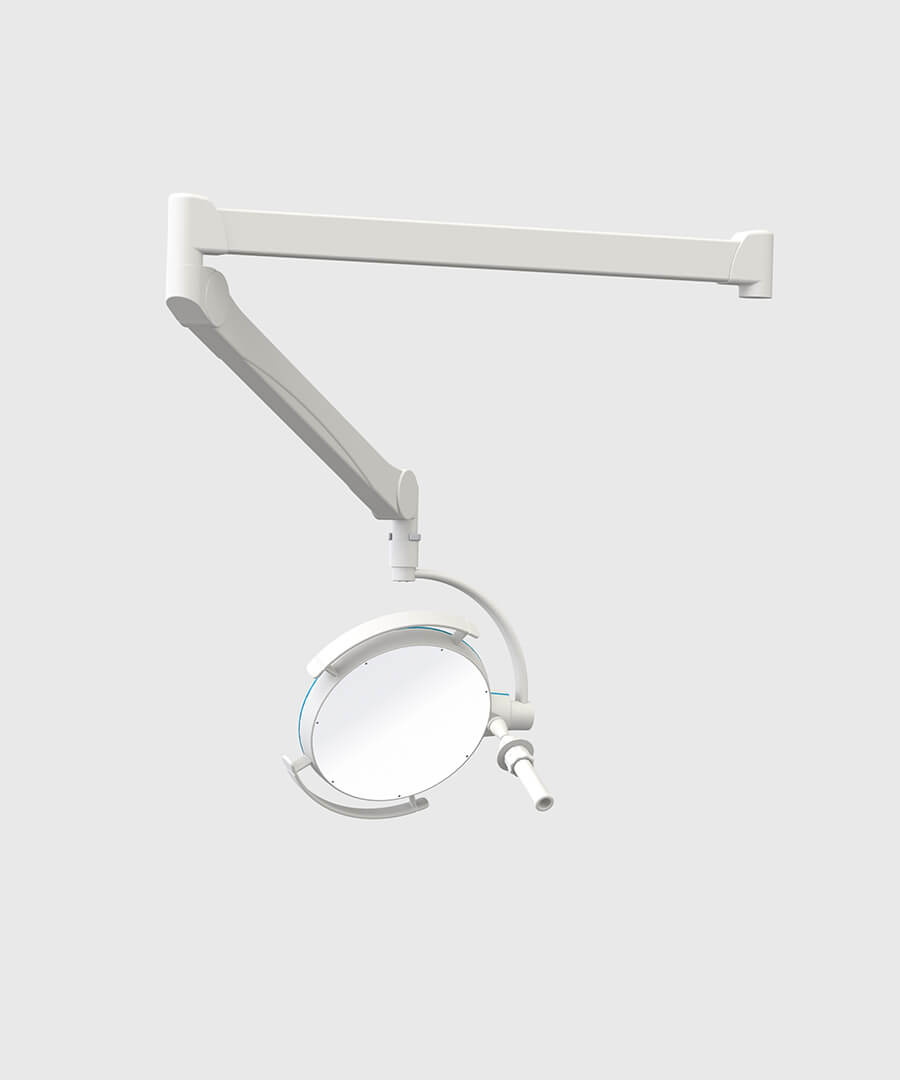

Focusable small operating lamp

LED 150F

Light output 110,000 Lux. Lamp head 40 cm diameter with 26 LED’s.

View product details

Clear selected products

Description

  • Small operating lamp.
  • Variable focusing.
  • Multiple facetted lenses provide a homogenous light field.
  • Easily focused by turning the detachable, sterilisable handle.
  • Both power and light intensity are controlled from the lamp head.
  • Light intensity at 1 metre: 110,000 Lux.
  • Electronic light intensity control at lamp head: 50% to 100%.
  • Colour rendering index Ra 97.
  • Focusable light field size: 16 cm to 24 cm.
  • Colour temperature: 4500 Kelvin.
  • Temperature increase at head area: 0.5 oC.
  • Total power consumption: 24W.
  • Light source: 26 LED’s.
  • Life span 60,000 hours.
  • Diameter of lamp head: 40 cm.

Overhead shield & LED 150F lamp combinations

  • Overhead protection with horizontal pivot shield & lamp
    351/P68/LED150F-001

    Installation type: Stationary system, Lamp: LED 150F, Flexible lead panels fitted to lower profile of shield: No

    351/P68/LED150F-001

  • 351 protective shield and lamp suspended from a track

    Overhead protection with horizontal pivot shield & lamp
    351/P68/LED150F-0031 & 3001/TC/250/EC

    Installation type: 250 cm ceiling track system & energy chain (cable management system), Lamp: LED 150F, Flexible lead panels fitted to lower profile of shield: No

    351/P68/LED150F-0031 & 3001/TC/250/EC

  • Overhead protection with centre mount shield & lamp
    354/P76/LED150F-001

    Installation type: Stationary system, Lamp: LED 150F, Flexible lead panels fitted to lower profile of shield: No

    354/P76/LED150F-001

  • 354 centre mount shield and lamp suspended from a track

    Overhead protection with centre mount shield & lamp
    354/P76/LED150F-0031 & 3001/TC/250/EC

    Installation type: 250 cm ceiling track system & energy chain (cable management system), Lamp: LED 150F, Flexible lead panels fitted to lower profile of shield: No

    354/P76/LED150F-0031 & 3001/TC/250/EC

  • 350 protective shield and lamp suspended from a track

    Overhead protection of eyes & thyroid
    350/45/LED150F-0031 & 3001/TC/250/EC

    Installation type: 250 cm ceiling track system & energy chain (cable management system), Lamp: LED 150F

    350/45/LED150F-0031 & 3001/TC/250/EC

  • Overhead protection of eyes & thyroid
    350/45/LED150F-001

    Installation type: Stationary system, Lamp: LED 150F

    350/45/LED150F-001
