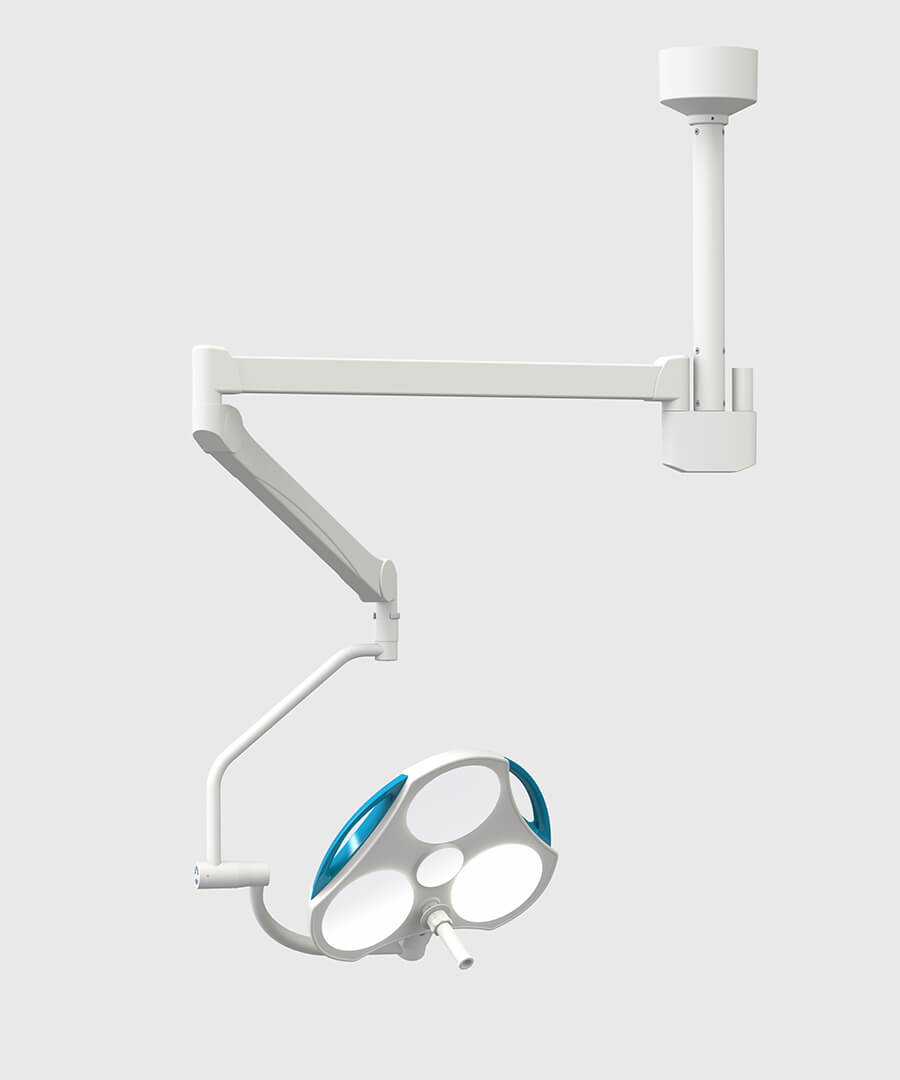

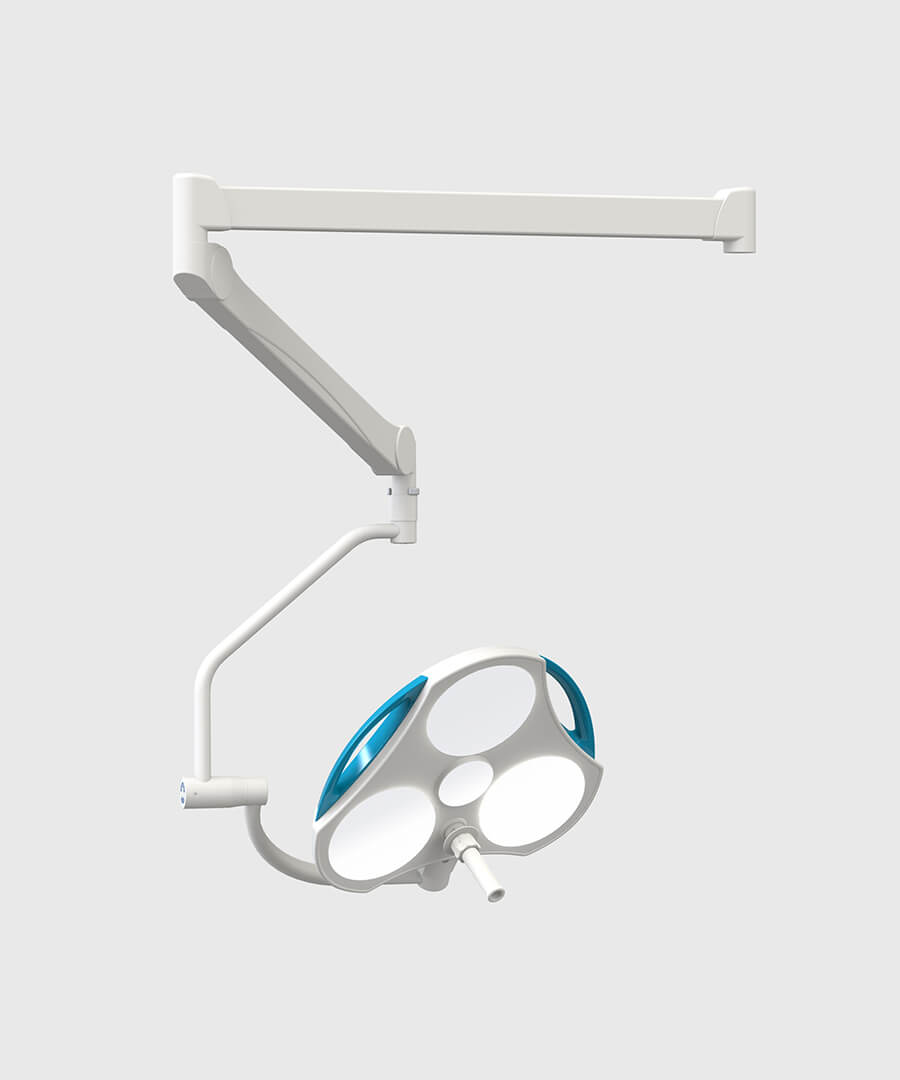

Single colour surgical lamp

Description

Facetted multi-lens system
A multitude of computer-calculated facetted lenses guarantees homogeneity with minimal shadow in the light field. Separately arranged optical systems, with one LED module, generate their own light field, which increases the contrast effect of the OT-light.

Merging of the individual luminous fields
By turning the sterilizable handle the LED-clusters with 12 lenses each, swivel. The single light fields can be joined and overlap to create one field with increased light intensity.

Focusing
By turning the adjustment ring on the sterilizable handle the light field diameter, created by the single LED clusters can be varied. This allows a punctual illumination of the deepest wound channels with
high intensity and exact matching of the light field diameter with the size of the surgical requirement.

• Light output 160,000 Lux.
• Colour rendering index Ra 96,
• Colour temperature: 4500 Kelvin.
• Step less dimming (28-100%).
• On/off switch at lamp head.
• Focusable size of the light field, 19-26 cm diameter.
• 36 LED’s.
• Life span 60,000 hours.
• Diameter of lamp head: 55 cm.
• Detachable sterilizable handle included.
