Mobile lead shield, height adjustable

Description

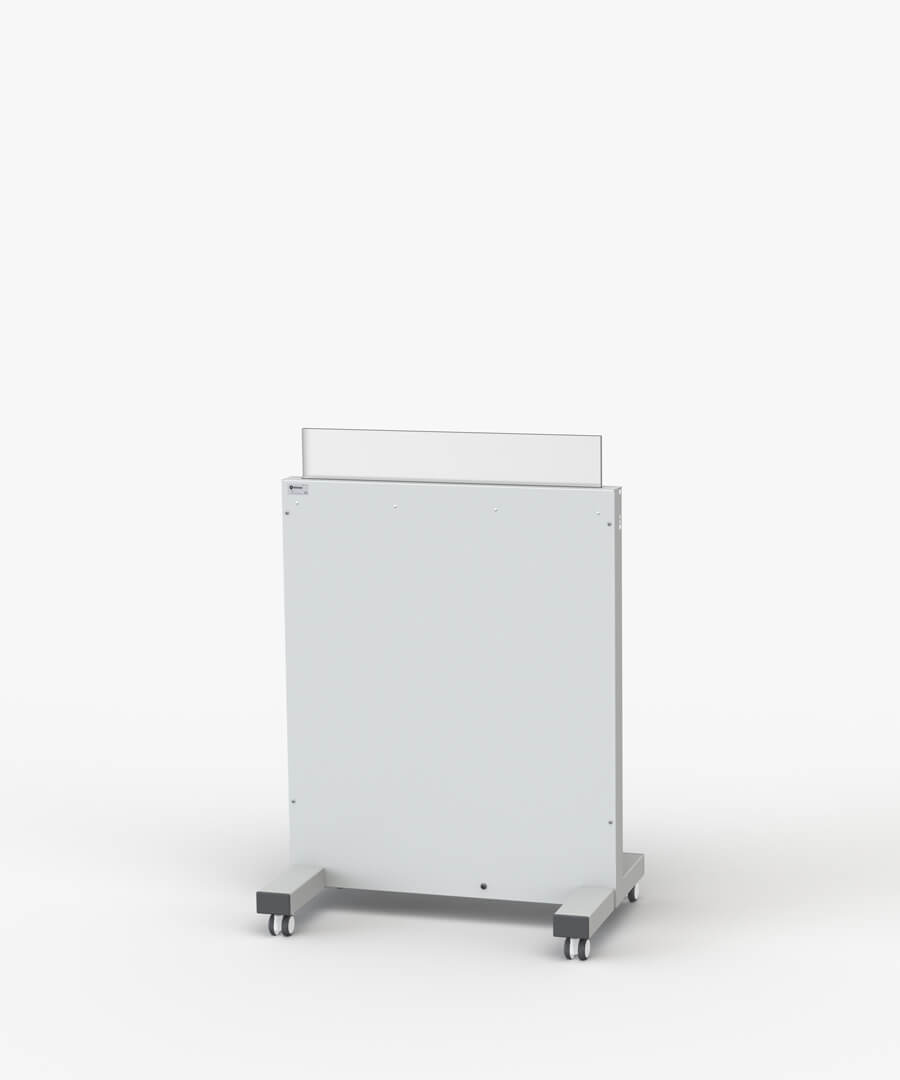

Mobile lead shield – 310/B-3

• Compact and easily manoeuvred into position.
• 78 cm wide x 102 cm high lower steel panel, 1.0 mm Pb equivalent (0.92 @ 100 kV & 0.56 mm Pb @ 150 kV).
• 70 cm wide lead acrylic window, 0.5 mm Pb equivalent (0.59 mm Pb @ 150 kV).
• Counterbalance so the window has no apparent weight and can be height adjusted quickly.
• The window can be raised and lowered between 115 cm and 188 cm high (from the floor).
• The mobile lead shield occupies minimal space when the window is lowered after use.
• Equipment hand controls can attached to the optional accessory rail.
• Full width rails are factory fitted and available in two sizes: 8 x 25 x 769 mm or 10 x 25 x 769 mm.

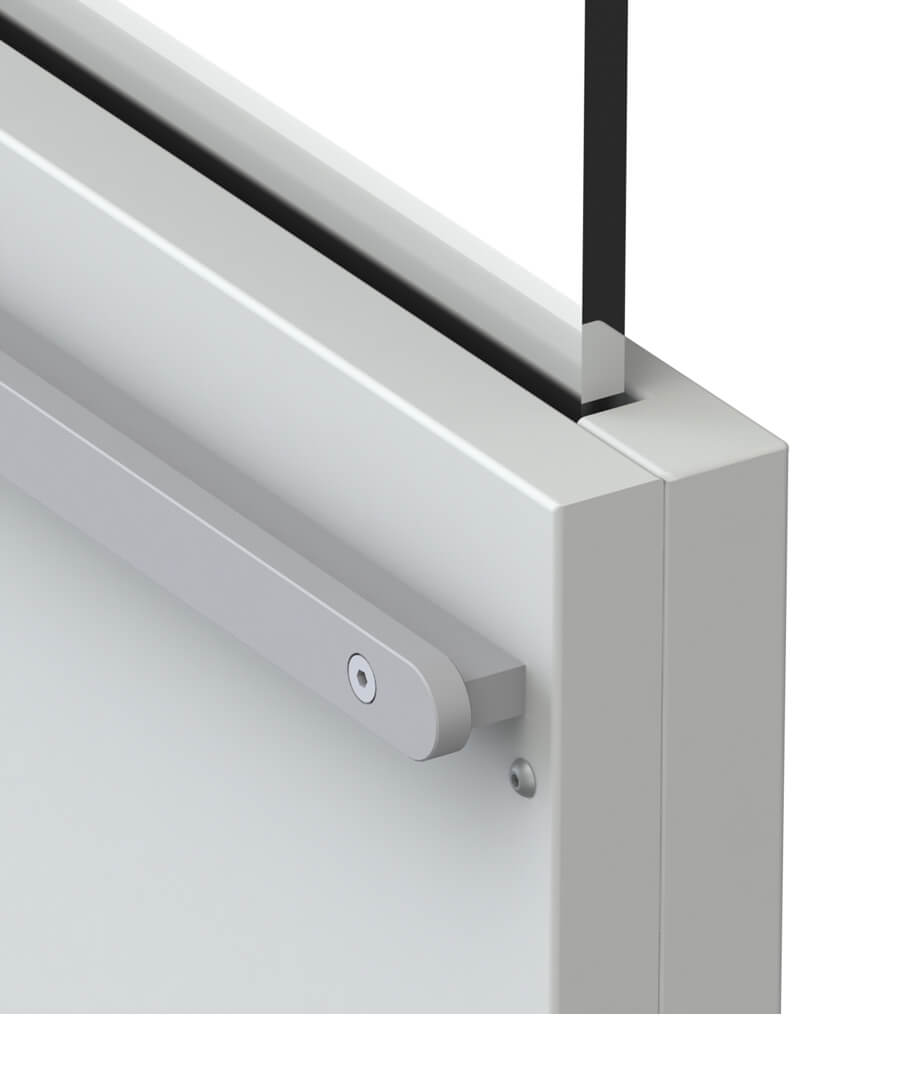

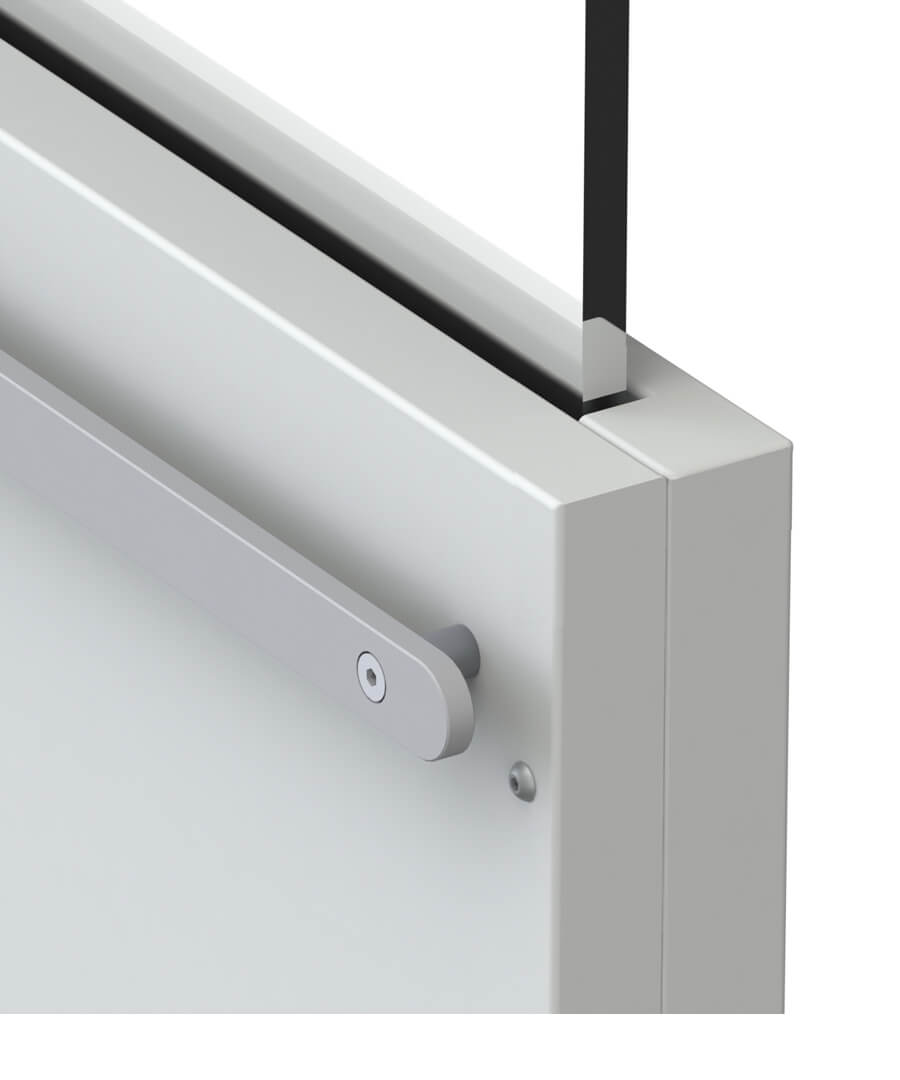

Optional accessory rails

• Shield 310/B-3 with rail 10 x 25 x 769 mm – 310/B-3/31.
• Shield 310/B-3 with rail 8 x 25 x 769 mm – 310/B-3/91.

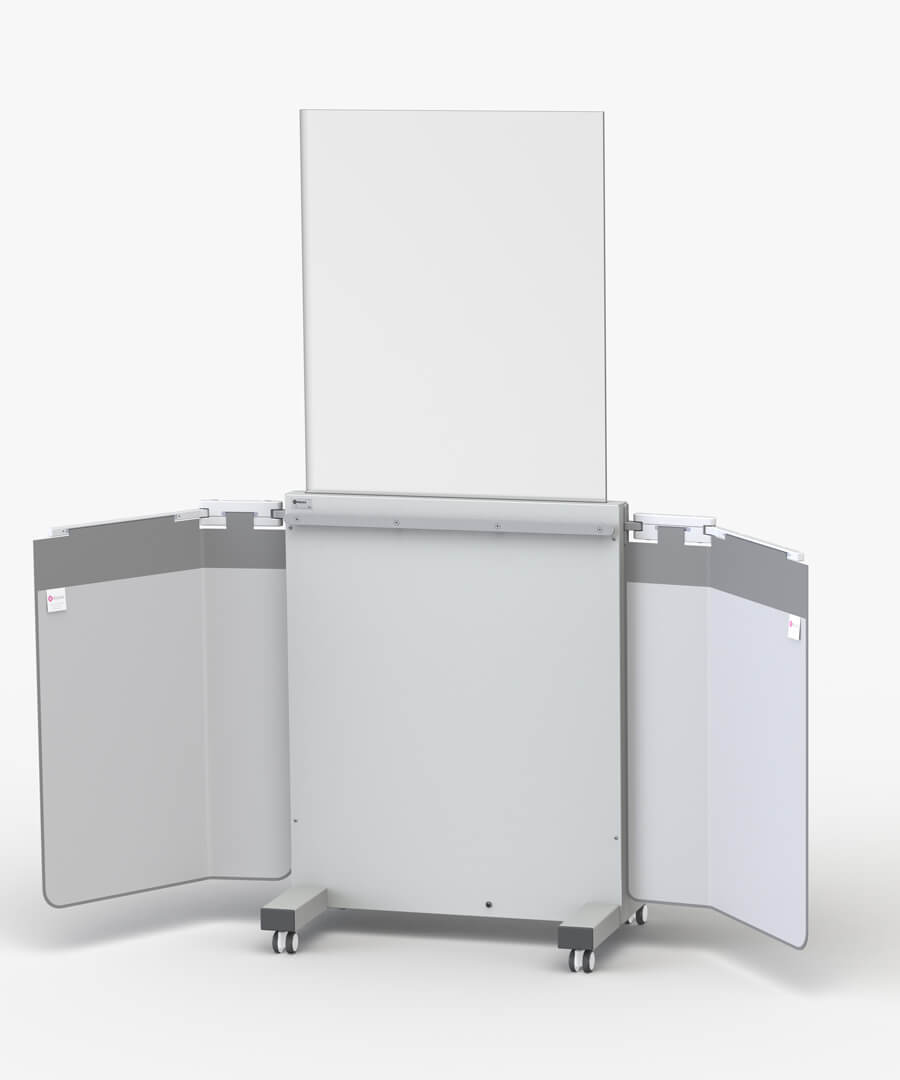

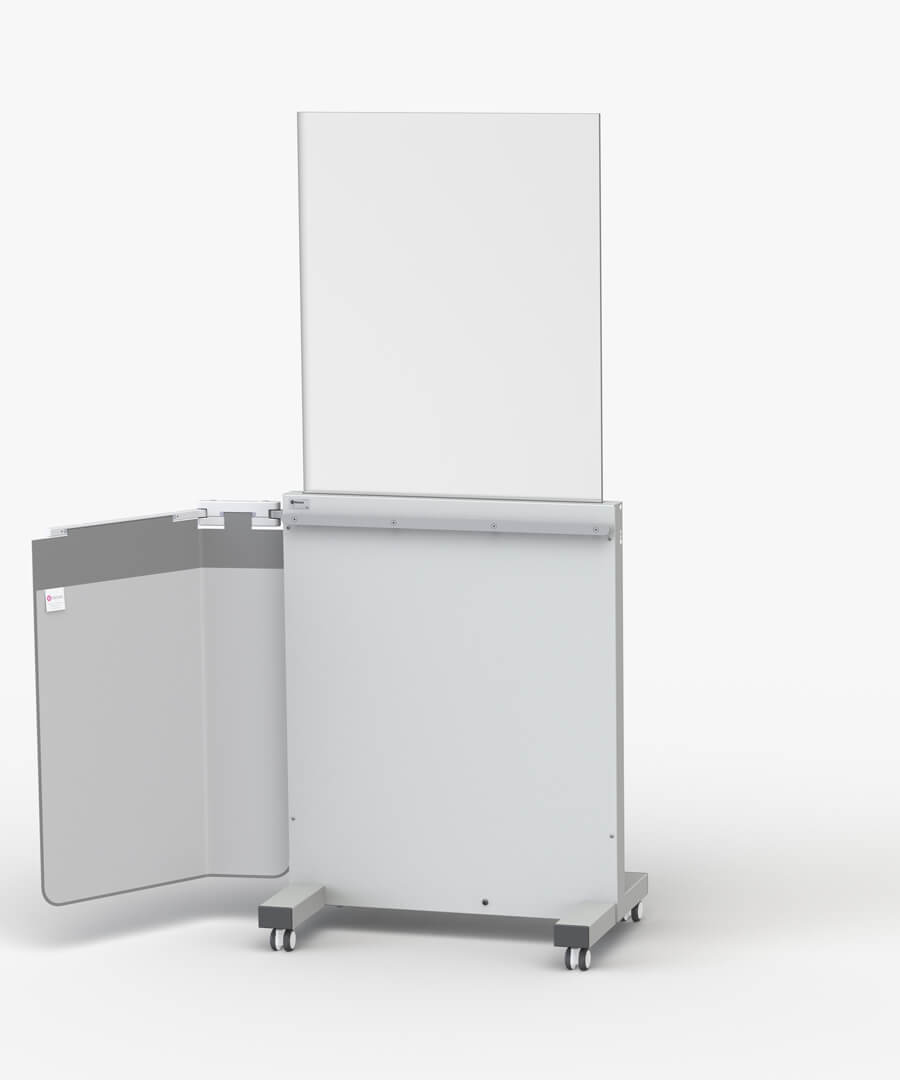

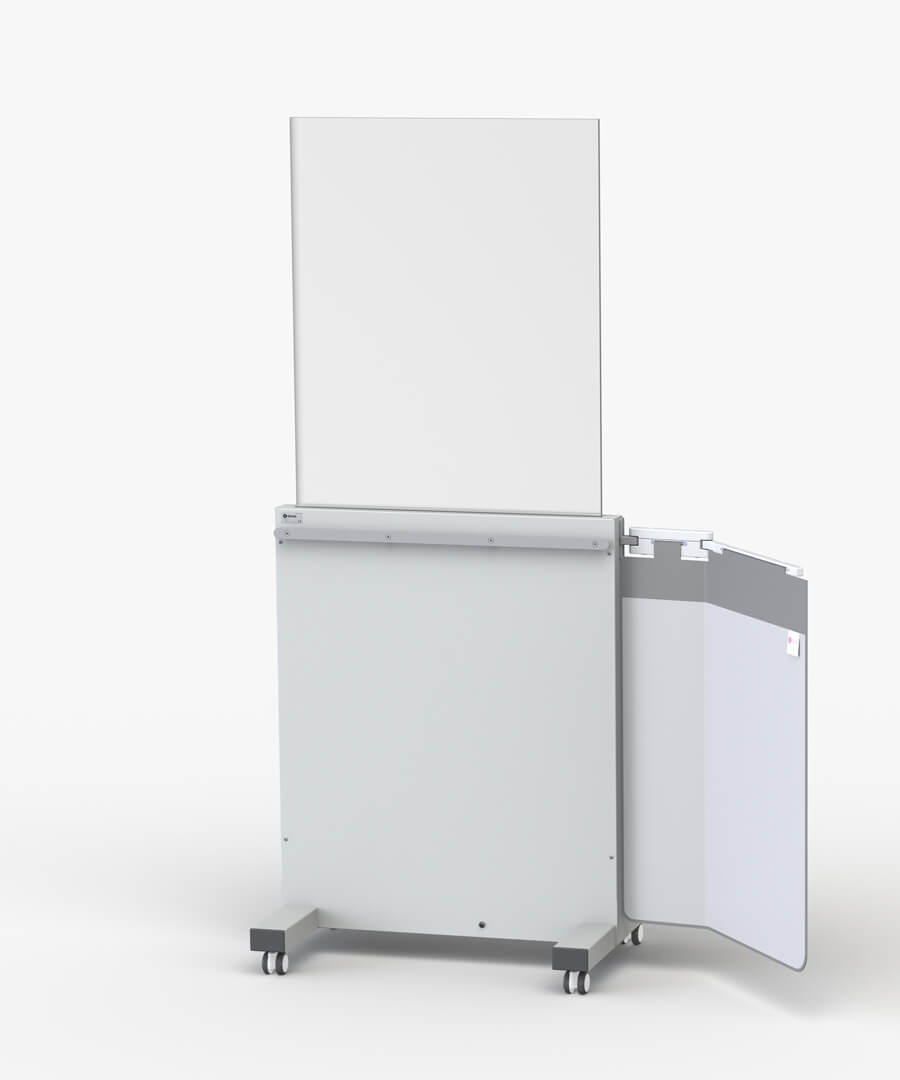

Optional protective side panels – 317/05-01

• Flexible 0.5 mm curtain on a double jointed pivotal arm that can swivel around to form a curved side wing.
• It can be fitted to either, or both sides of the 310/B-3 mobile shield.
• One curtain, when fully extended increases the shield width by 68 cm.
• The maximum width with two side panels is 214 cm.

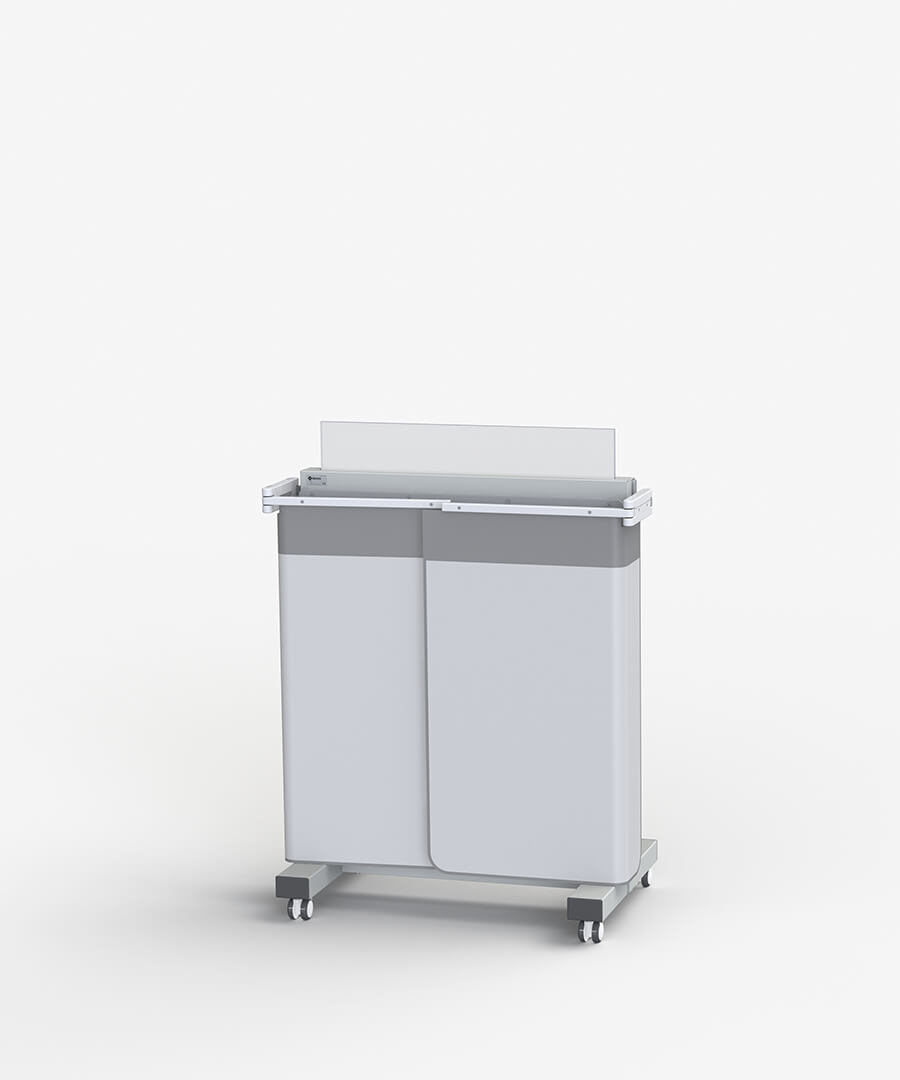

• Curtains fold across the front when not in use.
• Factory fitted only.
