Suspended protection with centre mount
354
Transparent, centre mounted upper body radiation shield, with or without patient contour corner cut out.
Description
Suspended protection with centre mount
- The transparent lead acrylic is lead equivalent 0.5 mm.
- Portrait orientation, but the central ball and socket joint provide 360 degrees of rotational and tilting movement.
- A patient contour corner cut-out is available for the 76 cm x 61 cm shield only.
- Flexible 0.5 mm lead panels are available for the lower profile of the shield.
- Bespoke ceiling column lengths are available on request.
- A ceiling Column can be statically mounted to the ceiling or attached to a movable carriage in a ceiling track.
Suspended protection with centre mount, 354 shield options

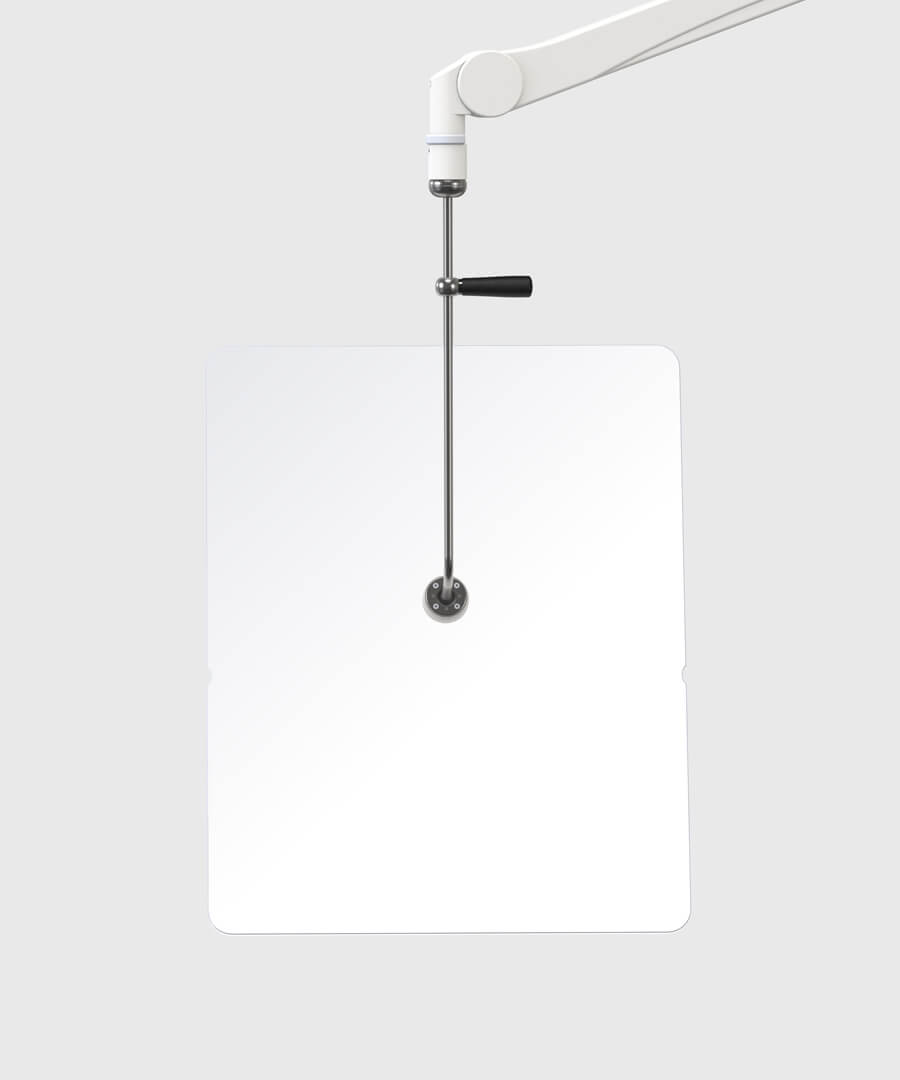

76 cm high x 61 cm wide.
76 cm high x 61 cm wide with a patient contour corner cut-out.

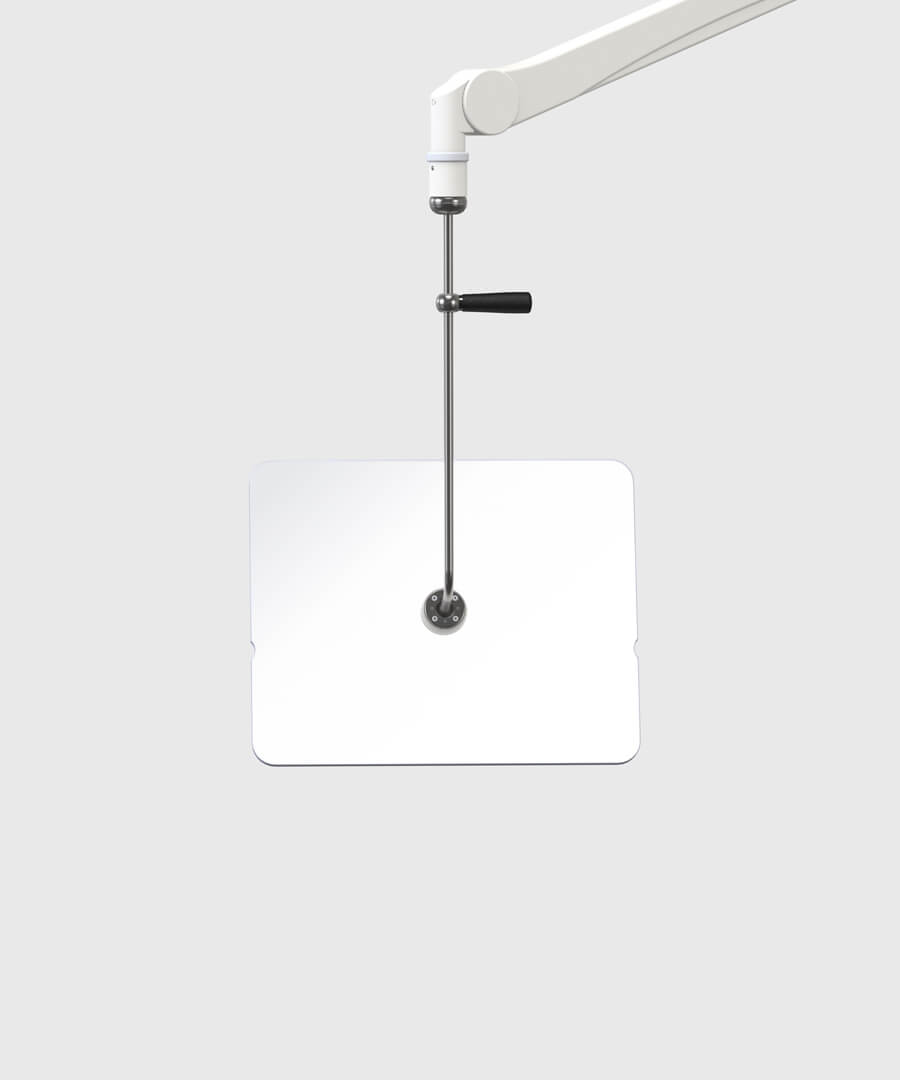

40 cm high x 50 cm wide.
Optional flexible 0.5 mm lead panels fitted around lower profile.
Installation options (note: physical installation of the product is not included)
– 354 shield only (product codes ending -007).
– 354 shield & suspension arm (product codes ending -006).
Stationary system (product codes ending -001):
– 354 shield, suspension arm & fixed 80 cm ceiling column.
Ceiling track system (product codes ending -0031):
– 354 shield, suspension arm, 80 cm column, 250 cm ceiling track & moveable carriage.
– 354 shield, suspension arm, 80 cm column, 420 cm ceiling track & moveable carriage.
Wall mounted system (product codes ending -005):
– 354 shield, suspension arm & wall fixing bracket.
- 354/P/76-001 (76 cm x 61 cm + patient contour shield, static ceiling mounted)

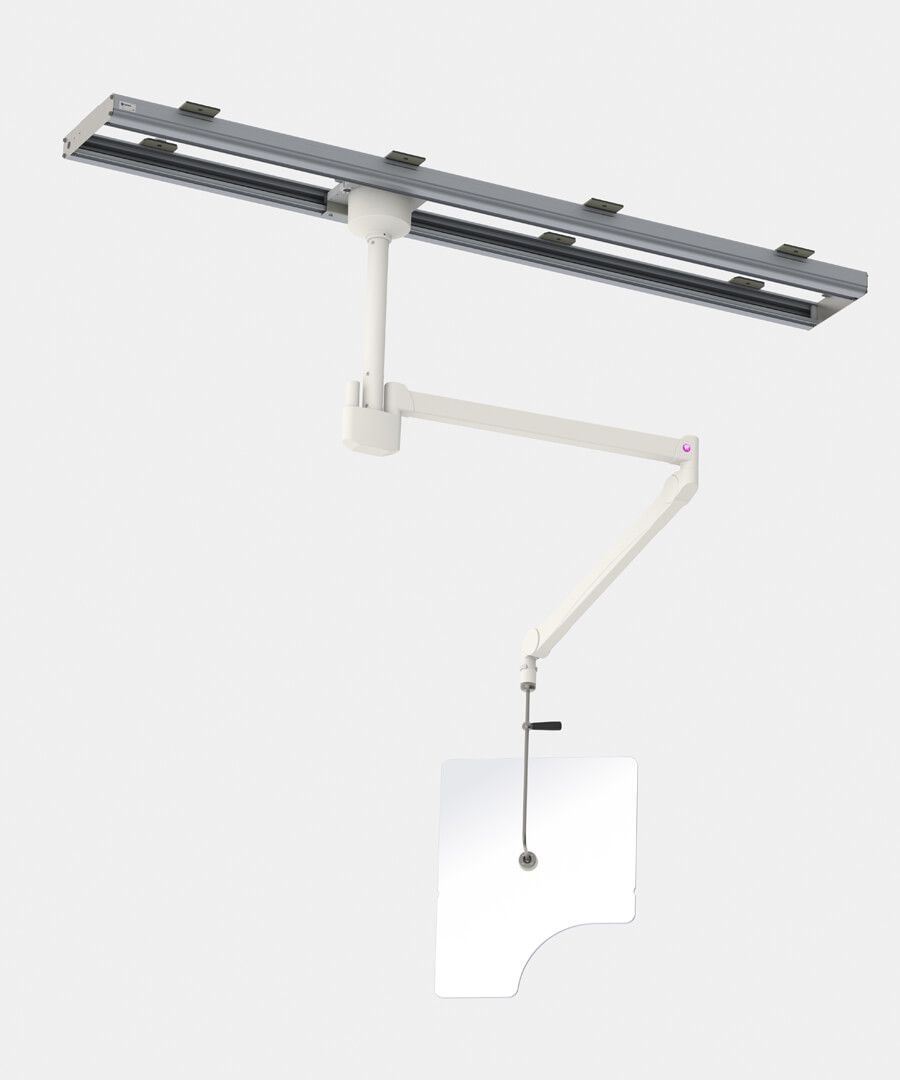

- 354/P/76-0031 (76 cm x 61 cm + patient contour shield, moveable ceiling carriage & track)
- 354/P/76-005 (76 cm x 61 cm + patient contour shield, wall mounted)
- 354/P/76-007 (76 cm x 61 cm + patient contour shield)
- 354/76-001 (76 cm x 61 cm shield, static ceiling mounted)
- 354/76-0031 (76 cm x 61 cm shield, moveable ceiling carriage & track)
- 354/76-005 (76 cm x 61 cm shield, wall mounted)
- 354/45-001 (40 cm x 50 cm shield, static ceiling mounted)
- 354/45-0031 (40 cm x 50 cm shield, moveable ceiling carriage & track)
- 354/45-005 (40 cm x 50 cm shield, wall mounted)
