Home > Our Products > X-ray shielding

X-ray shielding

X-ray overhead shields

Ceiling mounting plate 300/P

Provides support for the static installation of the ceiling column supplied with shields, lamps & monitor suspension systems.

Overhead ceiling mounted shield 350

Eyes and thyroid radiation shields.

Overhead ceiling mounted shield 351

Upper body radiation shields, with or without patient contour corner cut out.

Overhead ceiling mounted shield 354

Upper body radiation shield, with or without patient contour corner cut out.

Overhead flexible lead shield 308

Overlapping panels with a fold-up centre section retained by a press stud.

Overhead shield & lamp 350

Eyes and thyroid shield and lamp packages. Stationary and mobile installations include lamps equipped with LED technology.

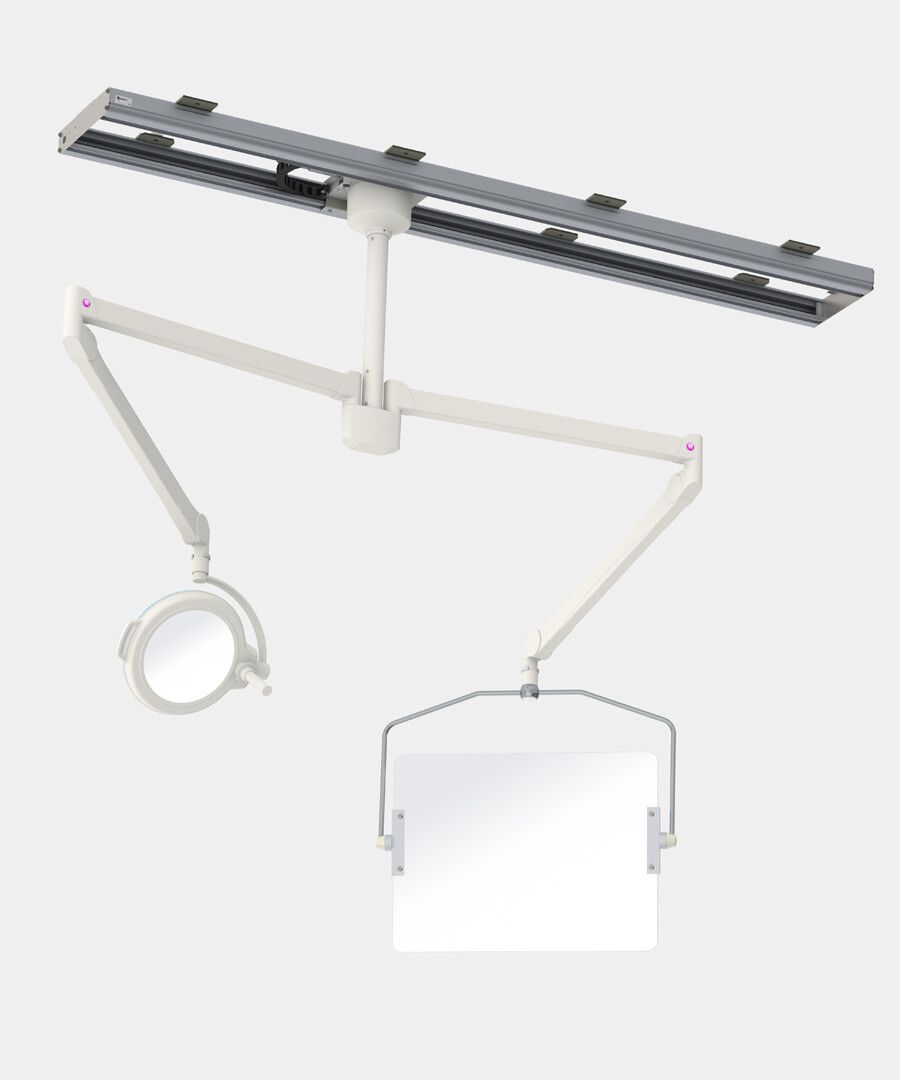

Overhead shield & lamp 351

Shield and lamp packages. Stationary and mobile installations include lamps equipped with LED technology.

Overhead shield & lamp 354

Shield and lamp packages. Stationary and mobile installations include lamps equipped with LED technology.

X-ray mobile shields

Flexible height adjustable mobile shield 314/05-01

Single flexible panel mobile shield, height adjustable with spring assistance.

Flexible height adjustable mobile shield 314/05-02

Double flexible panel mobile shield, height adjustable with spring assistance.

Flexible protective side panel 317 (factory fitted to 310/B-3)

A flexible curtain on a double-jointed pivotal arm can be factory fitted to the side, or to both sides of shield model 310/B-3.

Height adjustable mobile x-ray shield 310/B-3

The model 310/B-3 shield occupies minimal space when lowered after use.

Height adjustable over table shield 326/05

A dramatic reduction in radiation exposure to the whole body can be achieved when this shield is properly utilised.

Mobile protective screens 303

Mobile x-ray protective screens have a solid panel design with a lead core. All screens are finished on both sides.

X-ray table mounted shields

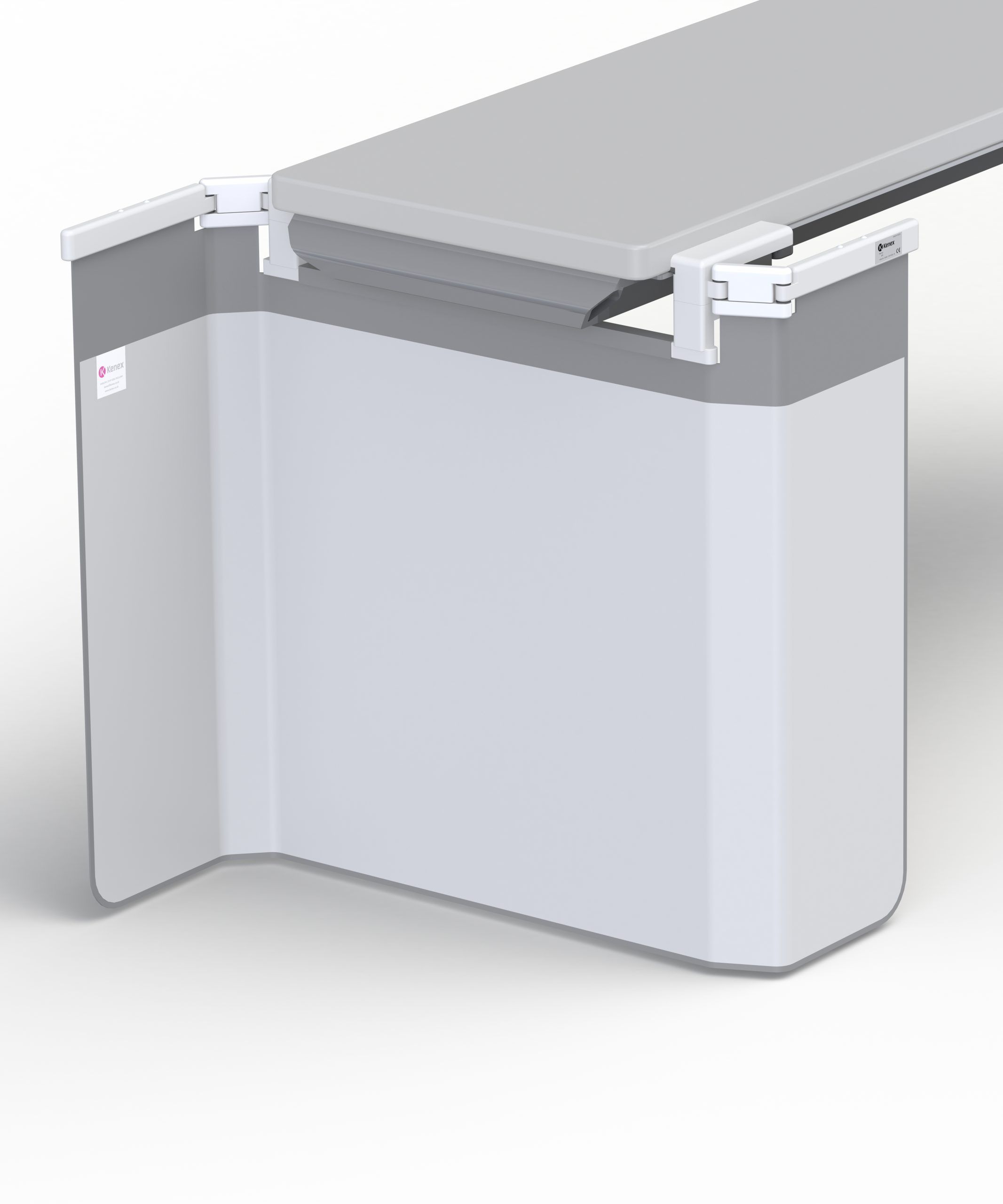

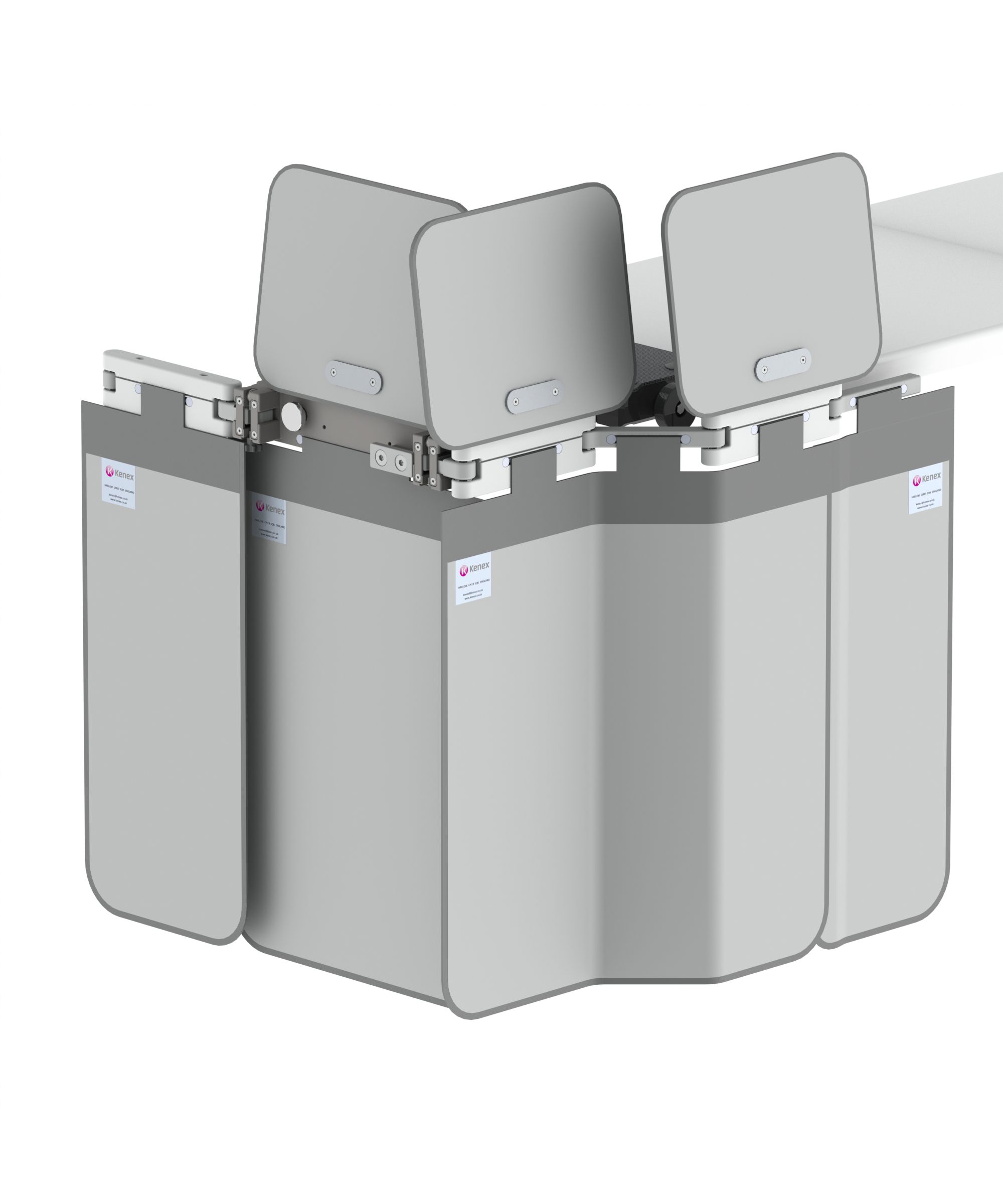

Head end table shield 313/A2

Lightweight and durable structure with a fixed central section and two pivotal side arms supporting a flexible 0.5 mm lead equivalent curtain.

Head end table shield 313/A3

The flexible 0.5 mm Pb top shield included with this head end shield can bend toward the patient or fold down when required or be removed completely.

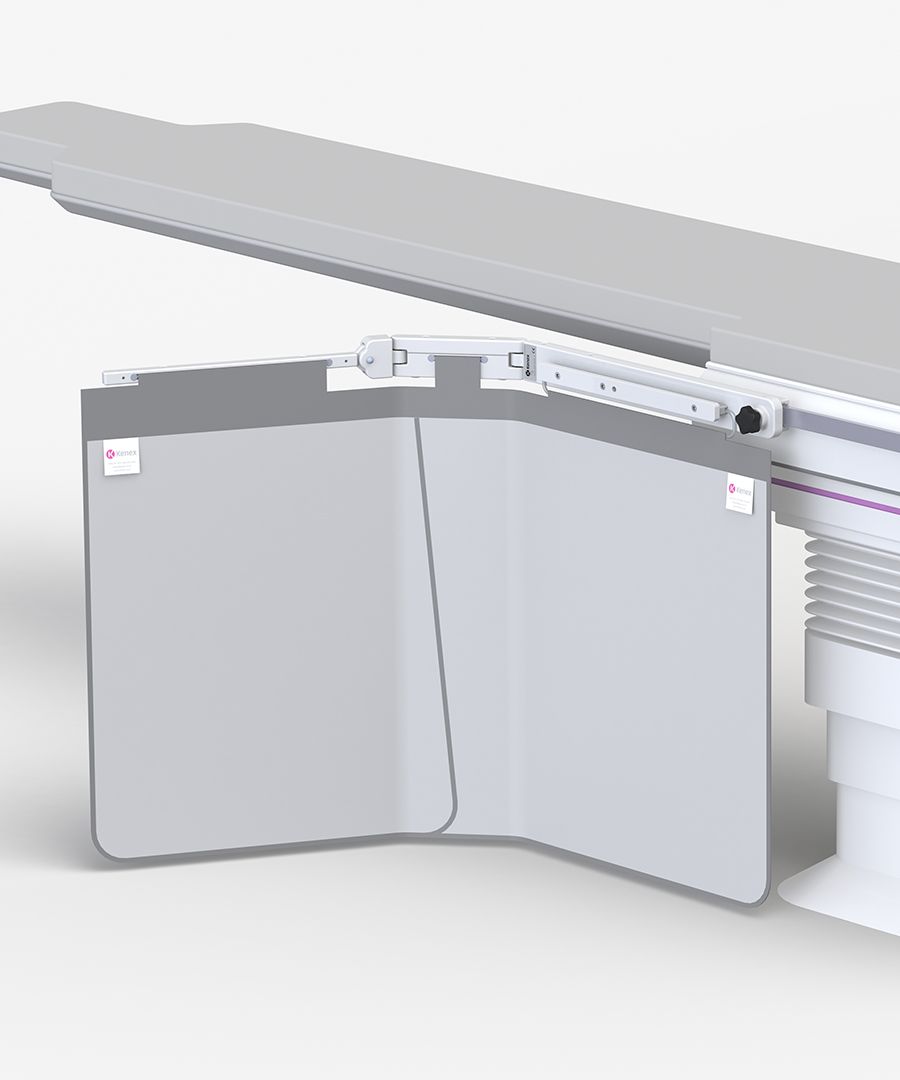

Lower body shields 312 E - Range

Overview of 312 E-Range table mounted lower body shields (Model 312/E-021 shown).

Lower body x-ray shield 311/DS-020 (Philips Medical Systems, part No. 9896-000-77201)

An 89 cm wide, overlapping curtain table shield including middle link and a 52 cm wide fold down top shield.

Lower body x-ray shield 312/DS-006 & 312/DS-007

Table mounted – with optional detachable top shields. This lower body shield reduces exposure to scatter radiation emanating from the table or patient’s body.

Lower body x-ray shield 312/DS-039/1

Table mounted – with optional detachable top shields.

Lower body x-ray shield 312/DS-039/2

These lower body shields substantially reduce exposure to scatter radiation emanating from the table or patient’s body.

Lower body x-ray shield 312/DS-039/5

Table mounted shield with integrated accessory rail & patented collision tolerant pivotal arm.

Lower body x-ray shield 312/E-005

78 cm wide with a single friction pivot, one piece table shield without a top shield.

Lower body x-ray shield 312/E-006

78 cm wide with a single friction pivot, one piece table shield with a 57 cm wide lift-off top shield.

Lower body x-ray shield 312/E-010

92 cm wide with a double friction joint, one piece table shield without a top shield.

Lower body x-ray shield 312/E-011

92 cm wide with a double friction joint, one piece table shield with a 57 cm wide lift-off top shield.

Lower body x-ray shield 312/E-011/P

92 cm wide with a double friction joint, overlapping curtain table shield with a 57 cm wide lift-off top shield.

Lower body x-ray shield 312/E-012 (with fold-down top)

92 cm wide with a double friction joint, one piece table shield with a 57 cm wide fold-down top shield.

Lower body x-ray shield 312/E-013 (with patented collision tolerant pivotal arm)

92 cm wide with a double friction joint, two piece collision resilient shield with a 57 cm lift-off top.

Lower body x-ray shield 312/E-015

100 cm wide with a single friction pivot, one piece table shield without a top shield.

Lower body x-ray shield 312/E-016

100 cm wide with a single friction pivot, one piece table shield with a 57 cm wide lift-off top shield.

Lower body x-ray shield 312/E-020

114 cm wide with a double friction joint, one piece table shield without a top shield.

Lower body x-ray shield 312/E-021

114 cm wide with a double friction joint, one piece table shield with a 57 cm wide lift-off top shield.

Lower body x-ray shield 312/E-022 (with fold-down top)

114 cm wide with a double friction joint, one piece table shield with a 57 cm wide fold-down top shield.

Lower body x-ray shield 312/E-023 (with patented collision tolerant pivotal arm)

114 cm wide with a double friction joint, two piece collision resilient shield with a 57 cm lift-off top.

Mobile rack 1342/A2

Mobile rack combinations for lower body table shields (types 311 & 312), upper removable top shields & head end shields (types 313)

Upper foot end table shield

Designed for use across the table towards the foot end.

Wall rack 312/W-LB

Wall rack for Kenex lower body radiation shields (types 311 & 312).

Wall rack 312/W-TOP

Wall rack for upper removable top shields.

Shielding materials

Clear lead acrylic (plastic)

0.5 mm Pb equivalent (12 mm thick).

Flexible lead vinyl sheeting

0.5 mm Pb equivalent (95 cm wide).

Lead glass

Clear optical quality 2.2 mm Pb equivalent.
